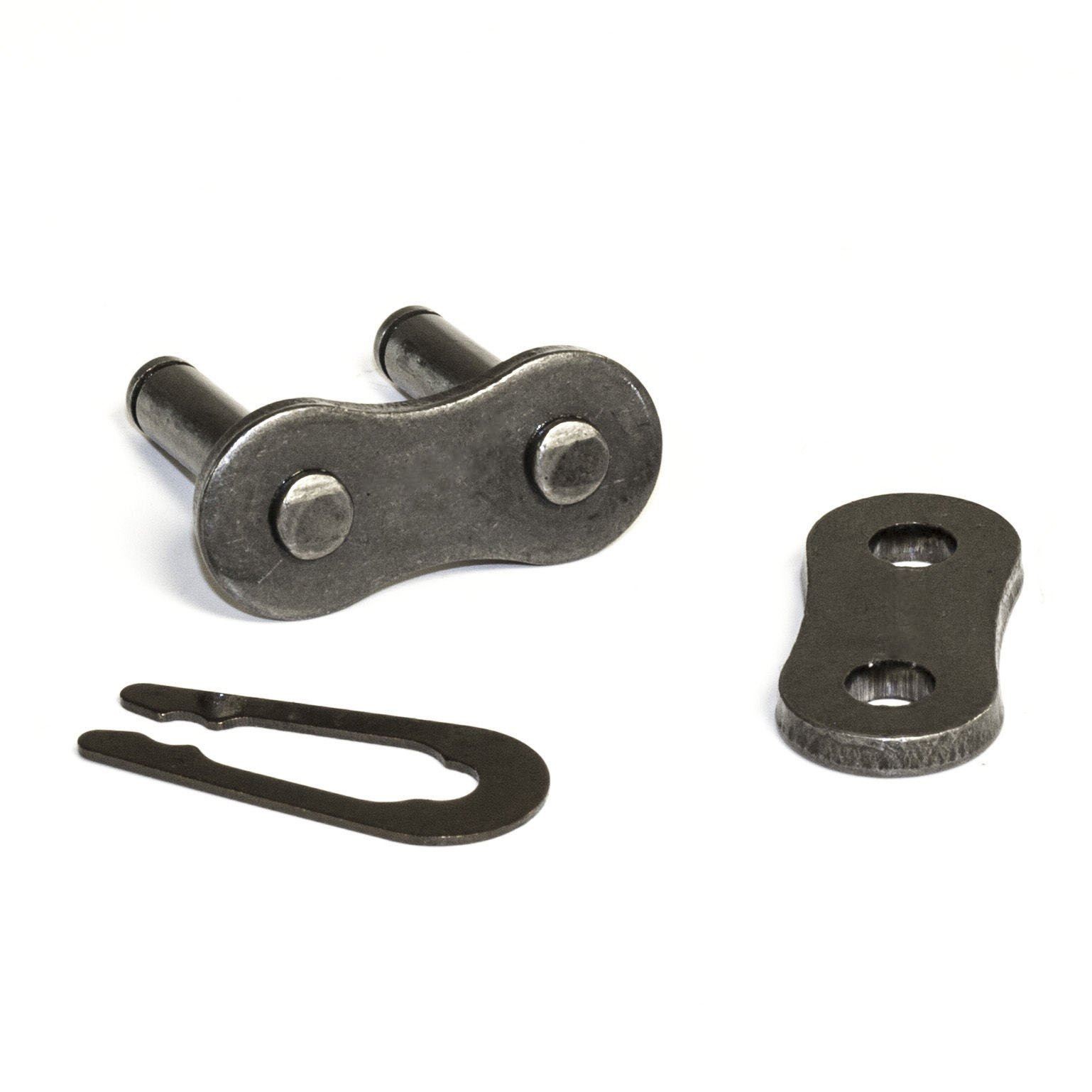

4-Pieces #415H Connecting Link, Master Link, for Motorized

4-Pieces #415H Connecting Link, Master Link, for Motorized Bike/Scooter/Bicycle

•  For ANSI #415H Heavy Durty Roller Chain
•  Applied advanced heat treatment process, strong resistance to impact
• Premium carbon steel material, providing reliable durability land strength
• Good wear resistance.

Specs for the chain that uses this link
Pitch Size: 1/2 Inch

Roller Diameter (d1 max) :  0.305 Inch

Width Between Inner Plates (b1 min) :  0.192 Inch

Pin Diameter (d2 max) :  0.155 Inch

Pin Length (L max) :  0.570 Inch

Pin Length (Lc max) :  0.515 Inch

Inner Plate Depth (h2 max) :  0.45 Inch

Plate Thickness (T max) :  0.059 Inch

Average Tensile Strength: 3620 lbs

Ultimate Tensile Strength:  3500 lbs

Fatigue:  380 kgf

Material:

Quantity Per Order:  4
